HQ7-3UF, Stage UF, 13"
বিবরণ

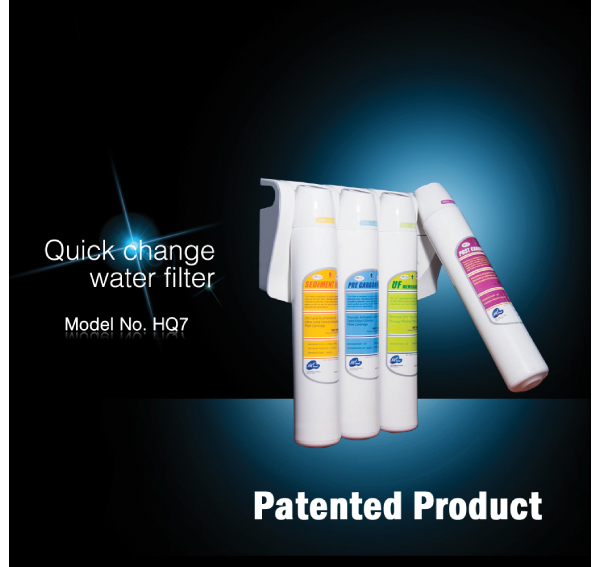

Quick Change |
 |
 |
* QUICK AND SOFT FILTER CHANGE |
| - Model :HQ7 Series RO System / UF System - Application : DIRT / RUST, TASTE / ODOR, CHLORINE, VIRUS, BACTERIA, E-COLI • Patented Product • No tools, No Water Spillage • Easy Filter Replacement |
 |
 |

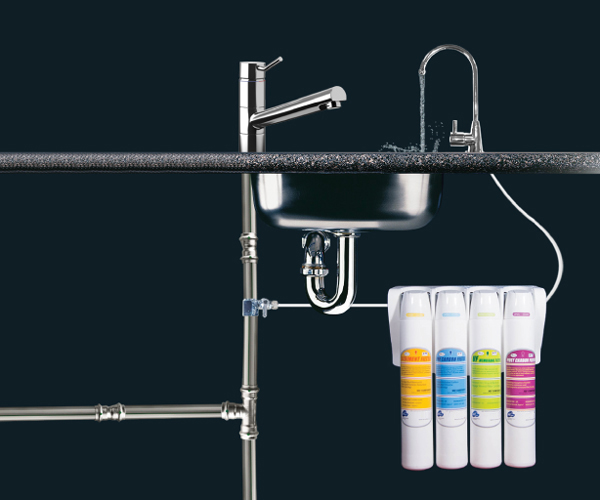

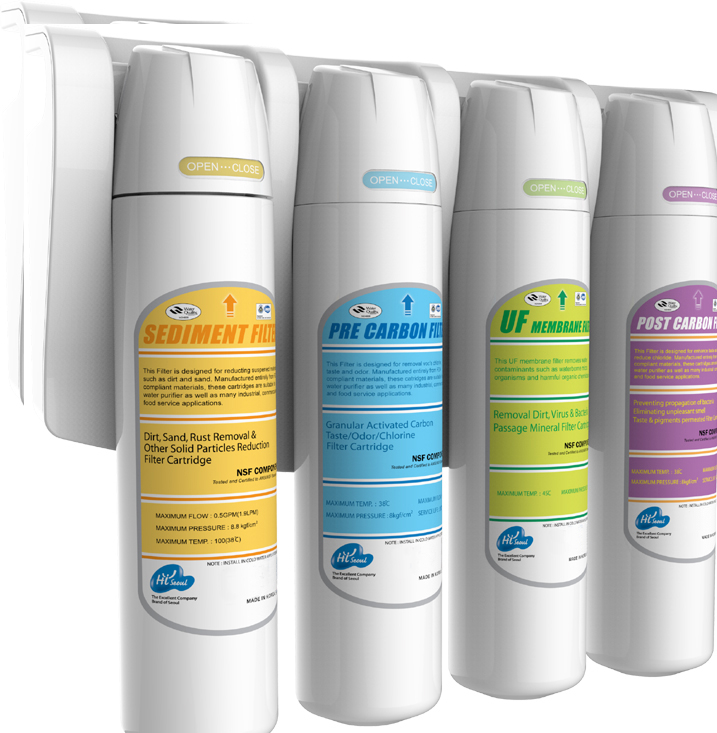

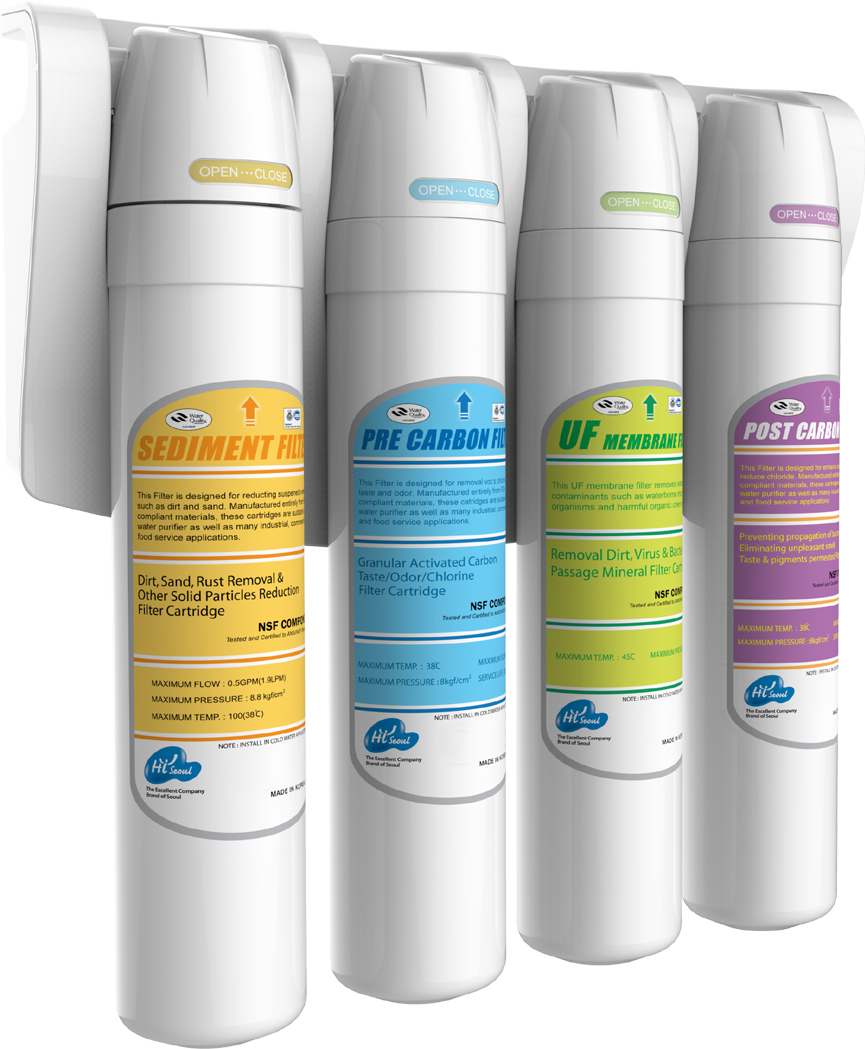

4 STAGE | |
| * RO TYPE : Sediment Filter + Pre Carbon Filter + RO membrane Filter + Post Carbon Filter | |
| * UF TYPE : Sediment Filter + Pre Carbon Filter + UF membrane Filter + Post Carbon Filter | |
|
Image View(Virtual Reality Product / Drag mouse on image) |
Click! |

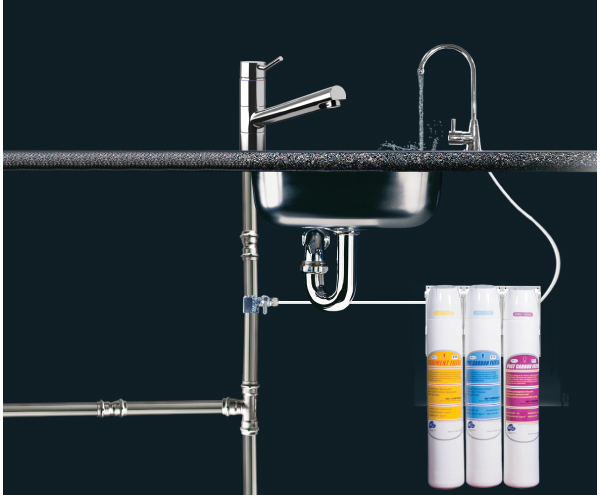

3 STAGE(HQ7 3FU) | |
| * RO TYPE : Sediment Filter + RO membrane Filter + Post Carbon Filter | |
| * UF TYPE : Sediment Filter + UF membrane Filter + Post Carbon Filter | |
| |

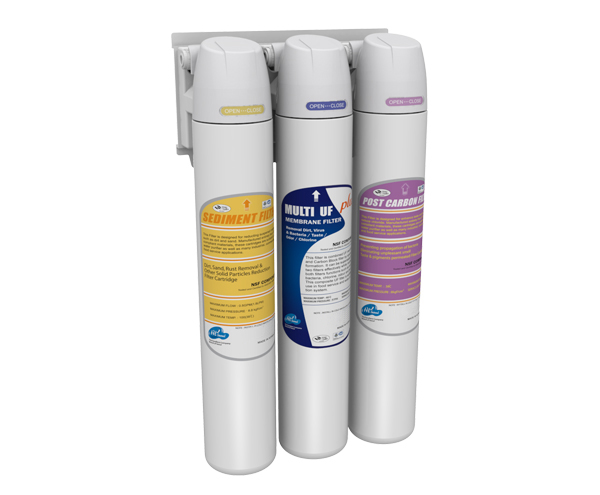

3 STAGE(HQ7 3FMU) | |
* Improving filtering performance by the Multi-Plus Composite filter! | |
|
Image View(Virtual Reality Product / Drag mouse on image) |
Click! |

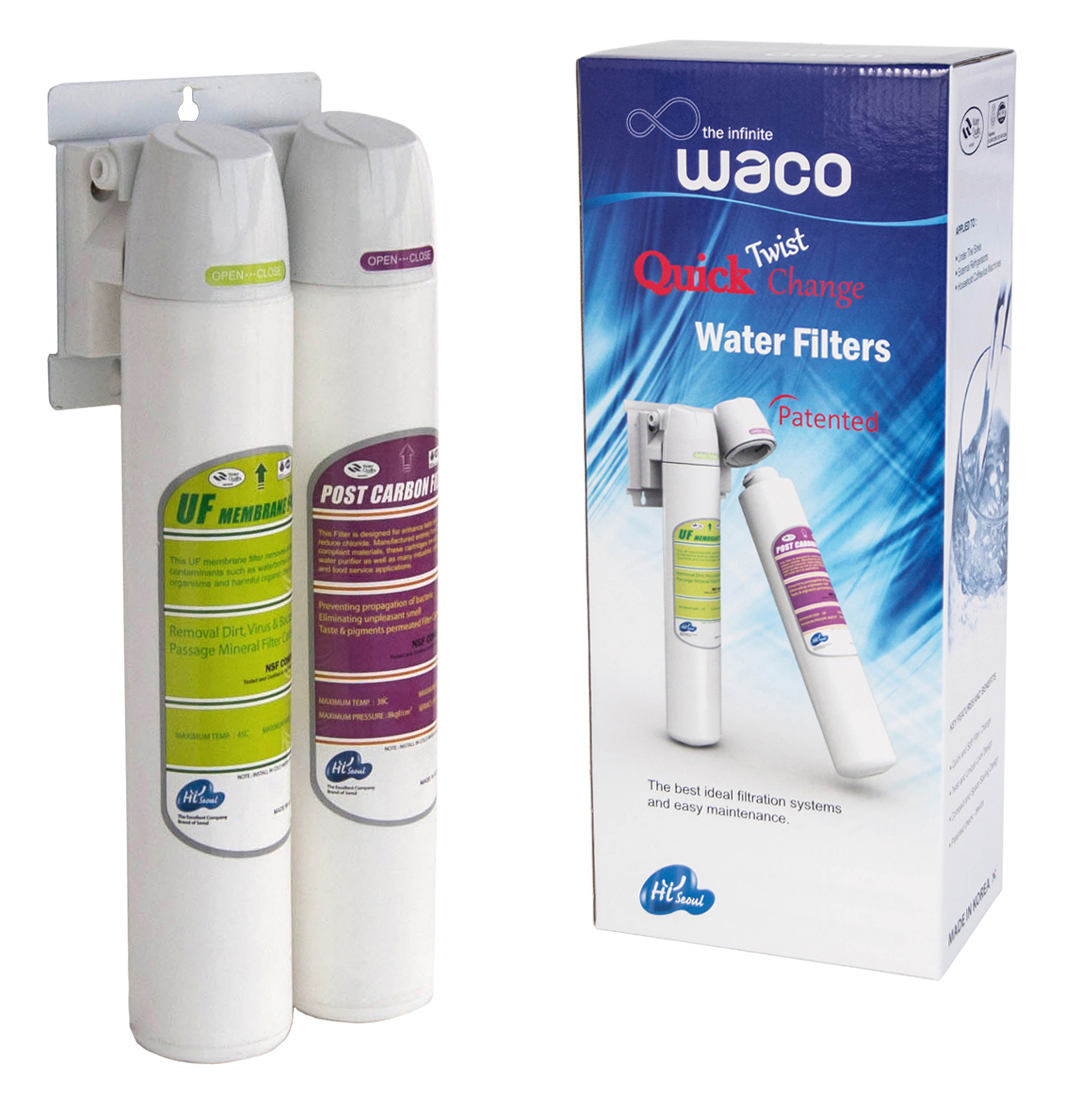

2 STAGE | |
| * Available to combine filter system on customer demand. | |
|

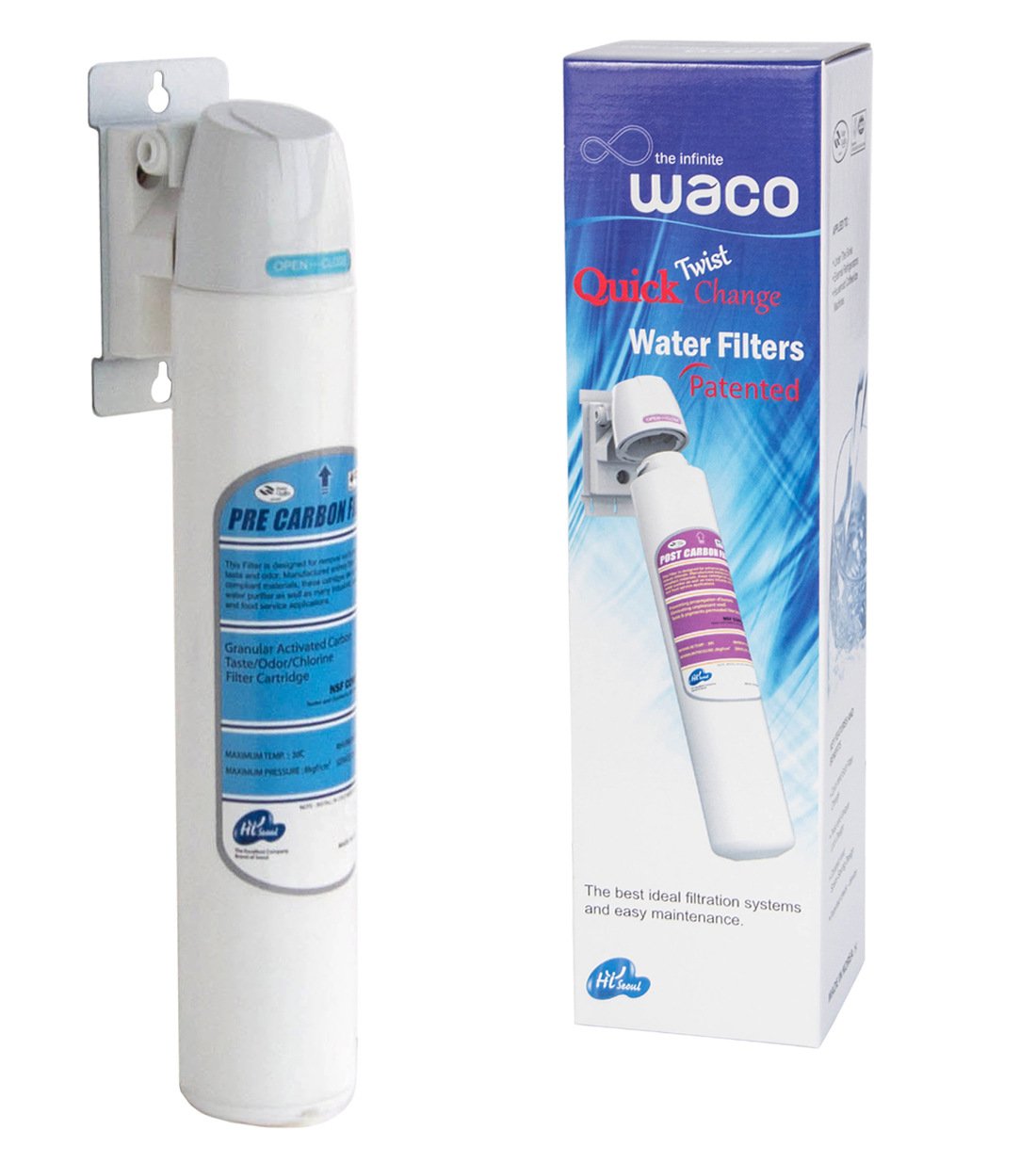

1 STAGE | |
| * Available to combine filter system on customer demand. | |
|

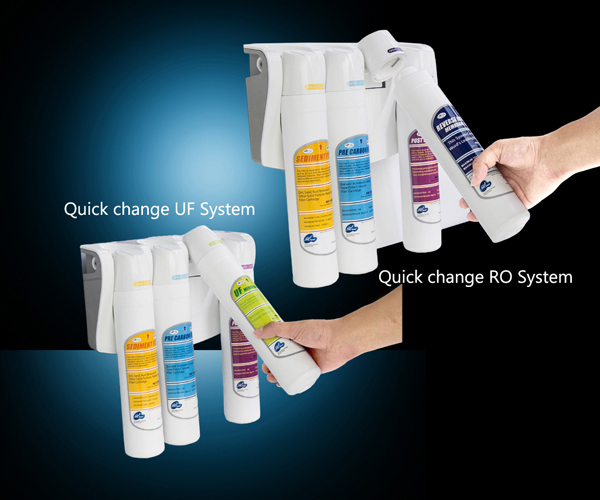

1. Features of HQ7 Series RO System / UF System |
| 1) Quick and soft filter change - Twist and unique lock design  | 2) Ball valve is builtin filter head - Minimized water drop when replace filters  |
| 3) No need electrical power - HQ7 is designed without pressure pump | 4) Attractive Design - Space saving Design |
Image View |
2. Specification of HQ7 Series |
| Model No. | Working Pressure | Maximum Temperature | Hydrostatic burst pressure | Impulse Test | Hydrostatic pressure | Inlet/Outlet Size |
| HQ7-RO | 40~125psi | 100℉ 38℃ | Min. 600psi | 0~150 psi for 100,000 cycles | 360 psi (2,482kPa) for 15 minutes | 1/4' TUBING |
| HQ7-UF | 30~60psi | 100℉ 38℃ | Min. 600psi | 0~150 psi for 100,000 cycles | 360 psi (2,482kPa) for 15 minutes | 1/4' TUBING |
3. Filters Specification of HQ7 Series |
| [STAGE 1] SEDIMENT Filter Operation Conditions - Flow rate : 0.5GPM(1.9LPM) - Pressure : 30 ~ 125PSI(2~8.8kgf/㎠) - Temperature : 34℉ ~ 100℉(1~38℃) - Function : mechanical reduction - Flushing : 5 minutes - Service life : 6 Month | [STAGE 2&4] Pre carbon Filter(4 stage) & Post Carbon Filter Operation Conditions - Flow rate : 0.5GPM(1.9LPM) - Pressure : 30~125 PSI(2~8.8kgf/㎠) - Temperature : 34℉ ~ 100℉(1~38℃) - Function : chemical reduction - Flushing : 5 minutes - Service life : 6 Month |
| [STAGE 3] TYPE : RO Membrane Filter Operation Conditions - Flow rate : 50GPD or 75GPD - Pressure : 40 ~ 125 PSI(2.8~8.78kgf/㎠) - Temperature : 34℉ ~ 100℉(1 ~ 38℃) - Function : RO membranes - Flushing : 30 minutes - Check valve is built in RO membrane filter and flow restrictor is added TYPE : UF Membrane Filter - Reduction : Bacteria, More than 99.9% for Escherichia coli & staphylococcus aureus. (Certified by Korea Environment & Water Works Institute) - Capacity : 2,500 Gallon (9,400 Liter) - Micron Rating : 0.05~0.01 micron - UF Membrane media is made in Korea - Service life : 1 Year | |

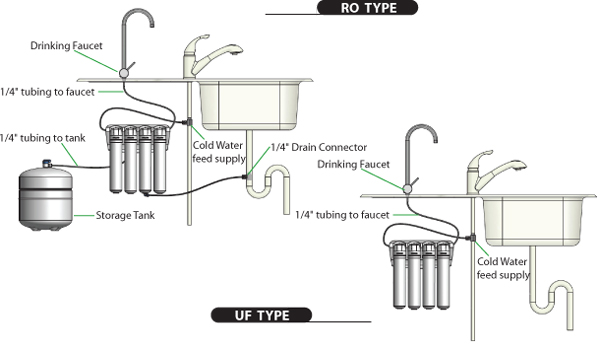

4. Diagram of HQ7 Series (4 STAGE) |
 |
5. HQ7 4FRS with RO Booster pump. |
| It is necessary to use RO booster pump for the stable water pressure if the raw water pressure is low. |
 |
Image View(Virtual Reality Product / Drag mouse on image) |
Click! |

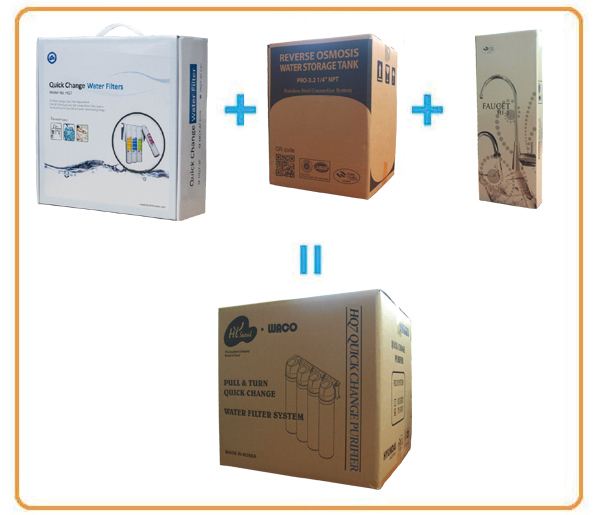

6. HQ7 Package System |
 |
