HCRO-300G, RO with Pump
বিবরণ

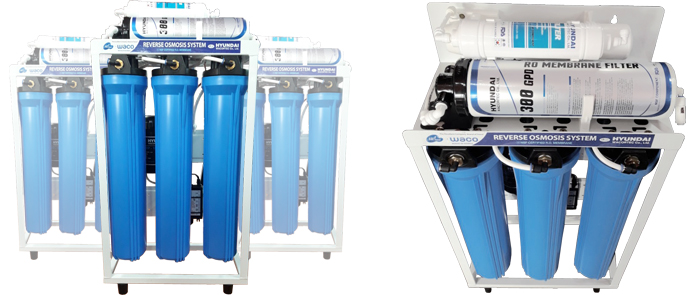

Commercial water treatment system
Model No. HCRO-300G
 |
HCRO-300G | |
|---|---|
Description | Commercial 6-Stage Stand type RO System 200 or 300GPD (With or W/O Pump) (RO Membrane 200G/300G) |
Specification | 20" Blue housing × 3 |
| Metal Stand type White Bracket |
| Big RO membrane housing |
| TCR In Line coconut shell Carbon Filter × 1 |
| 5 micron 20" spun sediment filter × 1 |
| 20" Activated carbon filter × 1 |
| 20" Activated carbon block filter × 1 |
| Filmtec RO Membrane 200G/300G |
| Booster pump(option) |
| Pump Transformer |
| Prevent backflow valve |
| Solenoid valve |
| Spanner wrenches |
| 1/4 inch Tubing for System Connection for 6M |
| Post Carbon filter |
| Flow Restrictor |
| Single Clip × 2 |
| Double Clip × 2 |
| High Pressure Switch |
| Low Pressure Switch |
| Drain Clamp × 1 |
| Brass Ball Valve × 1 |
 |

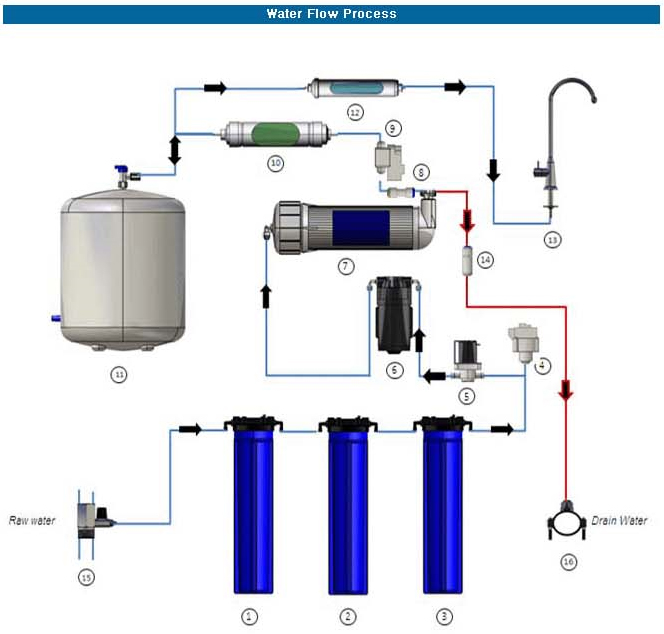

Description | |
|---|---|
1 | PP 20" |
2 | GAC 20" |
3 | CTO 20" |
4 | Low Pressure |
5 | Solenoid Valve |
6 | Booster Pump |
7 | 300 GPD RO Membrane |
8 | Check Valve |
9 | High Pressure Switch |
10 | Post Carbon Filter 13" |
11 | Water Tank |
12 | TCR Filter |
13 | Faucet |
14 | Flow Restrictor Valve |
15 | Inlet Valve |
16 | Drain Connetor |
HCUF system |
HCUF | |
|---|---|
Description | Commercial 4-Stage UF type |
Specification | 20" Blue housing × 3 |
| Metal Stand type White Bracket |
| 5 micron 20" spun sediment filter × 1 |
| 20" Activated carbon filter × 1 |
| 20" Activated carbon block filter × 1 |
| UF Membrane × 3 |
| Spanner wrenches |
| Single Clip × 2 |
| Double Clip × 4 |
 |

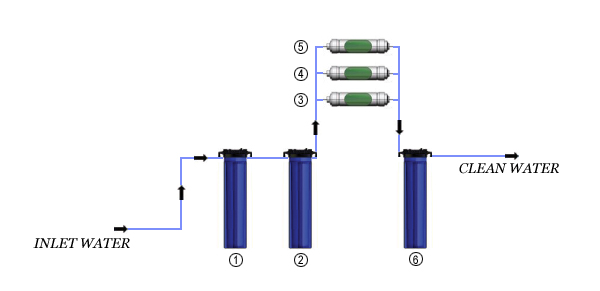

Description | |
|---|---|
1 | PP 20" |
2 | GAC 20" |
3/4/5 | UF Membrane |
6 | CTO 20" |
