Direct Chiller
বিবরণ
Direct Chiller
(chic and modern sensibility)
The Original RAPID COOLER!
Your Life, Your Water!

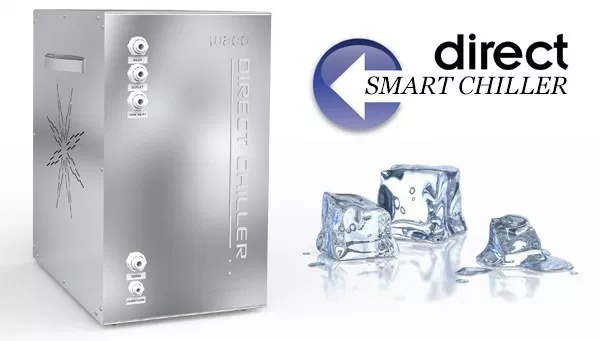

DIRECT CHILLER
Model No : HDC-10
This system is designed to connect to any home water source pipe line and it’s available to have cold water directly through the water faucet, Especially, the advanced direct cooling system by compressor is applied for this system.
This cooling system is cooling inside water pipe directly. so water gets chilled instantly when water flows through chilled piping. so this cooling system capacity is unlimited and no need of cold water reservoir tank, Therefore, Direct chiller can cover large cold water demand efficiently in commercial & public place such as restaurant, school, college etc.

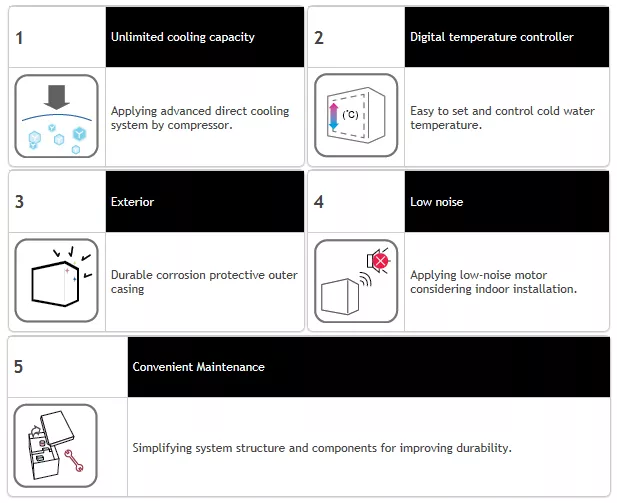

FEATURE OF DIRECT CHILLER
SPECIFICATION
| Uupacked Demention (mm) | 270mm X 440mm X 500mm |
| Net Weight ( kg ) | 25kg |
| ICE-BANK ( kg ) | 2.5~3kg |
| Nominal Voltage(V) / Frequency | 220~240V / 50 or 60Hz |
| Power Consumption ( W ) | 500W |
| Compressor Power ( HP ) | 1/4HP |
| Refrigerent | R-134A |
| Refrigerent Line(External) | 7.94mm |
| Refrigerent Line(Length) | 6.5M |
| Water Line ( Material ) | SUS304 |
| Water line ( External ) | 6.35mm |
| Water Line ( Length ) | 15 Meter |
| Cooling Water Tank | 6L |
| Cooling Water Tank(Material) | EPS |
| Fan Motor | 15W |
| Stirring Motor | 9W-2pcs |
| Temperature Control | Digital Temperature Control |

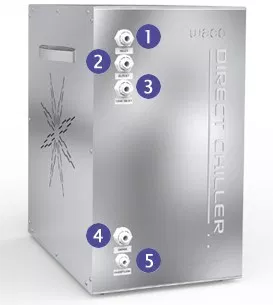

NAME OF EACH PART
1. INLET(3/8”)2. OUTLET(3/8”)3. TANK INLET(3/8")
4. DRAIN OUTLET(3/8")
5. DRAIN HOSE FOR OVERFLOW WATER OF COOLING TANK(1/4")
